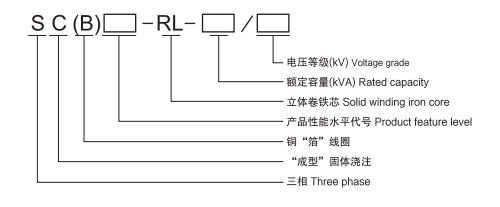

Model Description
Product Use
The product has good insulation performance, high mechanical strength, humidity resistance, no pollution, easy to install, basically no maintenance. It is suitable for high-rise buildings, wind power generation, solar new energy, hospitals, hotels, tunnels, stations, docks, airports, subways, petroleum, chemical industry, test laboratories, combined power stations, shopping centers and other important places.
Product use conditions
(1), Altitude
1000 meters and below; and
(2), cooling air temperature
Maximum temperature:40C
Hottest Monthly Average Temperature: 30°C
Maximum annual average temperature: 20C
Minimum temperature:-25C(for outdoor transformer)
Minimum temperature:-5C (for indoor transformers)
(3), Humidity
The relative humidity of the surrounding air should be less than 93%, and no water drops should appear on the surface of the coil. If the use conditions exceed the above requirements, the operating parameters (such as output current, etc.) should be adjusted appropriately and appropriate protection measures should be taken to ensure the operating life and safety and reliability of the product.
